Ürün Bilgileri

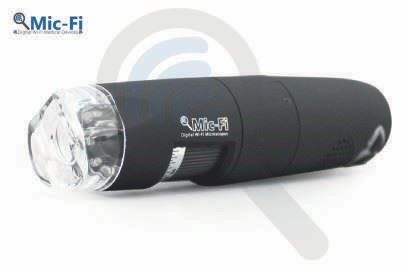

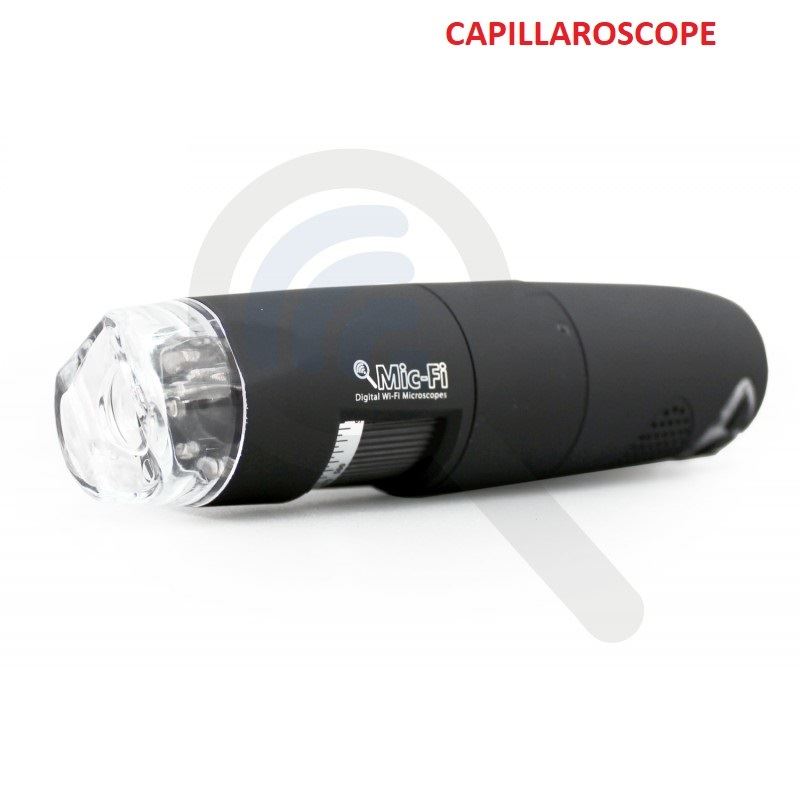

FEDMEDMICFIT6 - WI-FI CAPILLAROSCOPE
FedMedMicFiT6 is a small and portable digital capillaroscope with Wi-Fi transmission. Using proper SW and Apps you can take pictures and video using PC, smartphones or tablets.
Magnification 500x~600x

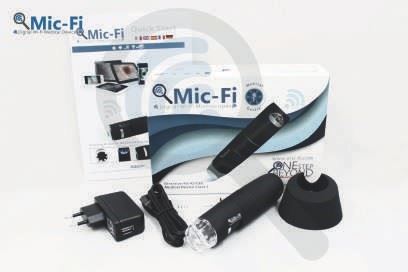

PACKAGE
• Wi-Fi Digital CAPILLAROSCOPE
• CD with Wifi Mic-Fi / USB Mic-Fi software + user manual
• USB AC adapter
• USB cable
• Quick manual
• Line Calibration Ruler
Professional Software for Capillaroscopy: see the Software section. Medical Mic-Fi Capillaroscope Class I 93/42/CE.
Information
Operation system: Windows ,OS X, IOS , Android
Photo and Video Resolution: 1.3MPixel-- 1280x1024(MJPG),640x480(MJPG), 320x240
Frame Rate: 15fps(1280x1024),30fps(640x480) 320x240
Wi-Fi Protocol: IEEE 802.11 b/g/n standards
Wi-Fi Wireless Transmission Distance: up to 5m
Transmit Power: 11n HT40 MCS7: +13 dBm , 11b CCK: +18 dBm , 11g OFDM: +15 dBm
Data Rate: 802.11n: up to 150Mbps , 802.11b: 1, 2, 5,5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Frequency Range: 2.400 ~ 2.4835GHz
Power Consumption: Max 2.5W Frame Rate: 10fps~30fps
Li-ion Battery: Continuous Working Time - Appx.2 Hours
Full Charging Time - Appx.2 Hours
Power Source: DC5.0V/1A Please use ONLY usb wall adaptors that are certified according the CE and/or FCC regulations
CAMERA Information
Camera Sensor: CMOS 1/4”
Optical features: Exposure: Auto, Gamma:Auto
White Balance: Auto, Black Reference: Auto
CAPILLAROSCOPE Information
Magnification: 500x~600x Object Distance: 0~3mm Focus Range: 0~3mm

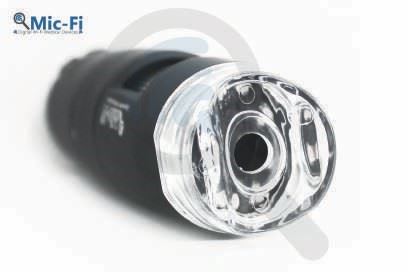

Light Source: n. 8 adjustable White Led (Led System 3.2V/20mA) Lens: High Definition Microscopy Lens
Dimensions: 36mm(Diameter) x 142mm(Length) Weight: 88g
USB Information
Photo and Video Resolution: 1.30Mpixel—1280x1024,640x480,320x240
Frame Rate: 15fps(1280x1024),30fps(640x480) 320x240
PC interface: USB 2. 0
MiniUSB Cable for recharging: 1.2m
